Customizing colors into dark

[neurocore]

Hi all! I use Code::Blocks a few years, and decided to change editor style to reduce eye fatigue. Just tried to customize IDE by settings -> editor -> syntax highlighting & margins and caret. But there are 3 problems:

1. I found no way to change the color of the line numbers. It still whitish.
2. Can editor interpret preprocessor commands separately from their arguments? Monolith color is annoying.
3. How to customize Logs & others?

There are 2 screenshots: what i want to achieve, and what i get with Code::Blocks.

[attachment deleted by admin]

[oBFusCATed]

1. I found no way to change the color of the line numbers. It still whitish.
3. How to customize Logs & others?

For both of these you'll have to install a darker windows theme. Unfortunately wxWidgets tries to look as native as possible.

[eranif]

For both of these you'll have to install a darker windows theme

This is not entirely correct...

The colour of the line numbers and folding margin can be customized using wxSctinilla API calls

Code

// 33 is the line number style
wxScintilla::StyleSetBackground(33, "RED");
wxScintilla::StyleSetForeground(33, "YELLOW");

// Fold margin:

Code

wxScintilla::SetFoldMarginColour
wxScintilla::SetFoldMarginHiColour

Ofc, someone needs to step up and implement it

Eran

[oBFusCATed]

Ofc, someone needs to step up and implement it

This is quite easy with our new colours system

Thanks for letting us know about these apis, Eranif.

[oBFusCATed]

Hm, it seems that setting the background for line numbers doesn't work on wxGTK.

All the other calls seems to work. Can someone test this on windows:

Code

Index: src/sdk/cbeditor.cpp
===================================================================
--- src/sdk/cbeditor.cpp        (revision 9361)
+++ src/sdk/cbeditor.cpp        (working copy)
@@ -1293,6 +1293,11 @@ void cbEditor::InternalSetEditorStyleBeforeFileOpen(cbStyledTextCtrl* control)
     control->SetCaretLineVisible(mgr->ReadBool(_T("/highlight_caret_line"), false));
     control->SetCaretLineBackground(GetOptionColour(_T("/highlight_caret_line_colour"), wxColour(0xFF, 0xFF, 0x00)));

+    control->StyleSetBackground(wxSCI_STYLE_LINENUMBER, *wxRED);
+    control->StyleSetForeground(wxSCI_STYLE_LINENUMBER, *wxBLACK);
+    control->SetFoldMarginColour(true, *wxRED);
+    control->SetFoldMarginHiColour(true, *wxBLACK);
+
     // setup for "CamelCase selection"
     if (mgr->ReadBool(_T("/camel_case"), false))
     {
Index: src/sdk/editorcolourset.cpp
===================================================================
--- src/sdk/editorcolourset.cpp (revision 9361)
+++ src/sdk/editorcolourset.cpp (working copy)
@@ -479,6 +479,8 @@ wxString EditorColourSet::GetLanguageName(HighlightLanguage lang)

 void EditorColourSet::DoApplyStyle(cbStyledTextCtrl* control, int value, OptionColour* option)
 {
+    if (value==33)
+        std::terminate();
     // option->value is ignored here...
     // value is used instead
     if (option->fore != wxNullColour)
@@ -534,10 +536,10 @@ void EditorColourSet::Apply(HighlightLanguage lang, cbStyledTextCtrl* control, b
                 DoApplyStyle(control, i, defaults);
         }
     }
-    // for some strange reason, when switching styles, the line numbering changes colour
-    // too, though we didn't ask it to...
-    // this makes sure it stays the correct colour
-    control->StyleSetForeground(wxSCI_STYLE_LINENUMBER, wxSystemSettings::GetColour(wxSYS_COLOUR_BTNTEXT));
+//    // for some strange reason, when switching styles, the line numbering changes colour
+//    // too, though we didn't ask it to...
+//    // this makes sure it stays the correct colour
+//    control->StyleSetForeground(wxSCI_STYLE_LINENUMBER, wxSystemSettings::GetColour(wxSYS_COLOUR_BTNTEXT));

     for (unsigned int i = 0; i < mset.m_Colours.GetCount(); ++i)
     {

[eranif]

Hm, it seems that setting the background for line numbers doesn't work on wxGTK.

Strange, this code works for me for all majors OS (including FreeBSD)

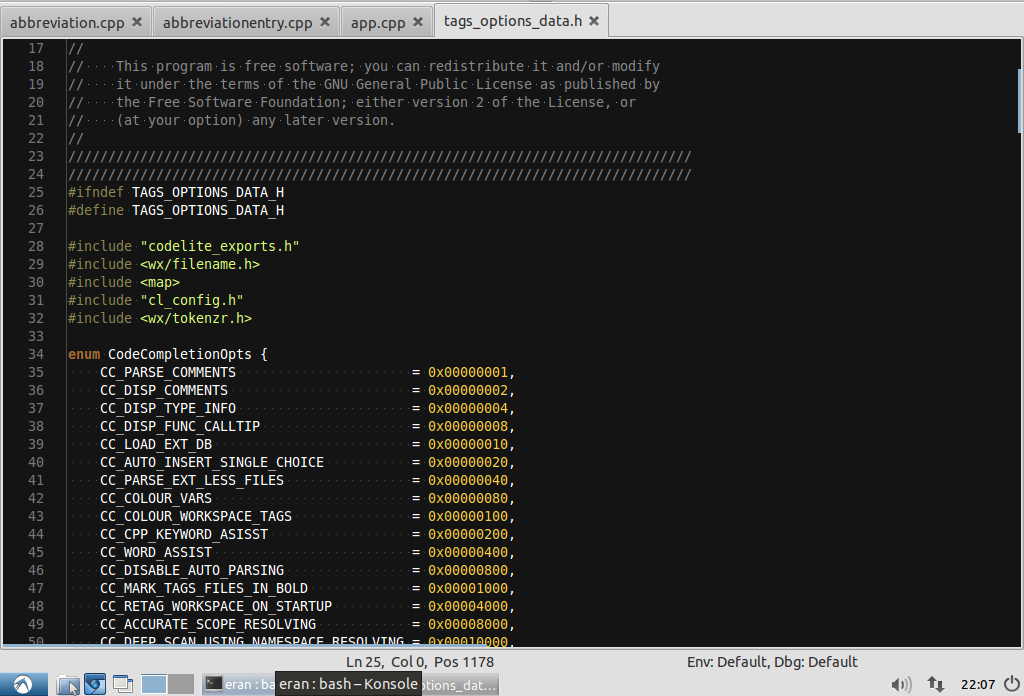

Here is a screenshot of how it should look:


Eran

[oBFusCATed]

Maybe it is something theme related. Is this screen shot from CodeLite?

[eranif]

Insert Quote
Maybe it is something theme related

I have it working on various themes / desktops (KDE, Ubuntu, XFCE) all are behaving the same

Is this screen shot from CodeLite?

Yes

Eran

[neurocore]

Aw, thank you, eranif. Thanks for CodeLite too

[oBFusCATed]

It turned out that is just a bug in C::B.

The following code causes it:

Code

void EditorColourSet::Apply(HighlightLanguage lang, cbStyledTextCtrl* control, bool isC)
{
    if (!control)
        return;
    control->StyleClearAll();

If I comment the last line it works as expected.

@devs: Do you know why we call this function?

[oBFusCATed]

Here is a patch that allows the user to change the colours of line numbers and the margin.
Anyone willing to test it or provide feedback?

Code

Index: src/sdk/cbeditor.cpp
===================================================================
--- src/sdk/cbeditor.cpp        (revision 9363)
+++ src/sdk/cbeditor.cpp        (working copy)
@@ -1288,11 +1288,17 @@ void cbEditor::InternalSetEditorStyleBeforeFileOpen(cbStyledTextCtrl* control)
         control->SetCaretWidth(mgr->ReadInt(_T("/caret/width"), 1));
     else
         control->SetCaretWidth(1);
-    control->SetCaretForeground(Manager::Get()->GetColourManager()->GetColour(wxT("editor_caret")));
+
+    ColourManager *colours = Manager::Get()->GetColourManager();
+
+    control->SetCaretForeground(colours->GetColour(wxT("editor_caret")));
     control->SetCaretPeriod(mgr->ReadInt(_T("/caret/period"), 500));
     control->SetCaretLineVisible(mgr->ReadBool(_T("/highlight_caret_line"), false));
     control->SetCaretLineBackground(GetOptionColour(_T("/highlight_caret_line_colour"), wxColour(0xFF, 0xFF, 0x00)));

+    control->SetFoldMarginColour(true, colours->GetColour(wxT("editor_margin_chrome")));
+    control->SetFoldMarginHiColour(true, colours->GetColour(wxT("editor_margin_chrome_highlight")));
+
     // setup for "CamelCase selection"
     if (mgr->ReadBool(_T("/camel_case"), false))
     {
Index: src/sdk/editorcolourset.cpp
===================================================================
--- src/sdk/editorcolourset.cpp (revision 9363)
+++ src/sdk/editorcolourset.cpp (working copy)
@@ -25,6 +25,7 @@
 #include <wx/txtstrm.h>  // wxTextInputStream
 #include <wx/wfstream.h> // wxFileInputStream

+#include "cbcolourmanager.h"
 #include "cbstyledtextctrl.h"

 #include "editorcolourset.h"
@@ -534,10 +535,11 @@ void EditorColourSet::Apply(HighlightLanguage lang, cbStyledTextCtrl* control, b
                 DoApplyStyle(control, i, defaults);
         }
     }
-    // for some strange reason, when switching styles, the line numbering changes colour
-    // too, though we didn't ask it to...
-    // this makes sure it stays the correct colour
-    control->StyleSetForeground(wxSCI_STYLE_LINENUMBER, wxSystemSettings::GetColour(wxSYS_COLOUR_BTNTEXT));
+
+    // Calling StyleClearAll above clears the style for the line numbers, so we have to re-apply it.
+    ColourManager *colours = Manager::Get()->GetColourManager();
+    control->StyleSetForeground(wxSCI_STYLE_LINENUMBER, colours->GetColour(wxT("editor_linenumbers_fg")));
+    control->StyleSetBackground(wxSCI_STYLE_LINENUMBER, colours->GetColour(wxT("editor_linenumbers_bg")));

     for (unsigned int i = 0; i < mset.m_Colours.GetCount(); ++i)
     {
Index: src/sdk/editormanager.cpp
===================================================================
--- src/sdk/editormanager.cpp   (revision 9363)
+++ src/sdk/editormanager.cpp   (working copy)
@@ -166,6 +166,16 @@ EditorManager::EditorManager()
     ColourManager *colours = Manager::Get()->GetColourManager();
     colours->RegisterColour(_("Editor"), _("Caret"), wxT("editor_caret"), *wxBLACK);
     colours->RegisterColour(_("Editor"), _("Right margin"), wxT("editor_gutter"), *wxLIGHT_GREY);
+    colours->RegisterColour(_("Editor"), _("Line numbers foreground colour"), wxT("editor_linenumbers_fg"),
+                            wxSystemSettings::GetColour(wxSYS_COLOUR_BTNTEXT));
+    colours->RegisterColour(_("Editor"), _("Line numbers background colour"), wxT("editor_linenumbers_bg"),
+                            wxSystemSettings::GetColour(wxSYS_COLOUR_BTNFACE));
+
+    // These two are taken from Platform::Chrome() and Platform::ChromeHightlight()
+    colours->RegisterColour(_("Editor"), _("Margin chrome colour"), wxT("editor_margin_chrome"),
+                            wxSystemSettings::GetColour(wxSYS_COLOUR_3DFACE));
+    colours->RegisterColour(_("Editor"), _("Margin chrome highlight colour"), wxT("editor_margin_chrome_highlight"),
+                            wxSystemSettings::GetColour(wxSYS_COLOUR_3DHIGHLIGHT));
 }

 EditorManager::~EditorManager()

[oBFusCATed]

@eranif: Are you using a 1px wide margin for the vertical line after the line numbers in your screenshot?

[eranif]

@eranif: Are you using a 1px wide margin for the vertical line after the line numbers in your screenshot?

Yes, I am using margin of type MARGIN_FORE:

Code


SetMarginType(SYMBOLS_MARGIN_SEP_ID, wxSTC_MARGIN_FORE);
SetMarginMask(SYMBOLS_MARGIN_SEP_ID, 0);

Where SYMBOLS_MARGIN_SEP_ID is the margin number (in my case its 3 )

EDIT: there is another margin in that screenshot: the symbols margin (where you place the debugger current line marker, breakpoints, bookmarks etc)

Eran

[neurocore]

Please, make a color customizable version of Code::Blocks if it not difficult. Thanks.

[Jenna]

Please, make a color customizable version of Code::Blocks if it not difficult. Thanks.

If it is not difficult and you really need it, please provide a patch.

[MortenMacFly]

If it is not difficult and you really need it, please provide a patch.

Isn't it already done by Obf?
